Leading the Way in Portable Laser Innovation
Leading the Way
in Portable Laser Innovation
200k+ Users
from Personal Makers
to Thriving Businesses
170+ Countries
One Standard of Global Excellence
8 Years
Building Confidence
since 2017
200+ Patents
200+
Patents
Proven Commitment
to Innovation
Product Highlights

Smart Touchscreen
One swipe for lasers, One tap for repeats
Extended Accessories

Beginner-Friendly Operation
Get started right out of the box
Beyond Space Limits

Working Area
160×120 mm

Movement Accuracy
0.01 mm

Engraving Speed
4000 mm/s

Offline Control
with Touchscreen
Run Projects Right on the Machine
Use the built-in LCD touchscreen to switch laser sources, monitor engraving progress, enter sleep mode, and access saved project files — no computer or phone required.
Engrave Again in One Tap
Your previous settings are saved automatically. Tap “Engrave Again” to repeat a job instantly and cut setup time by up to 90%.
Dual Lasers, More Possibilities
10W Blue Diode + 2W Infrared Laser
Engrave and cut across wood, metal,
plastic, and more without switching tools.

10W 450 nm
Diode Laser
Cut and engrave a wide range of everyday materials — including wood up to 8mm and acrylic up to 5mm with proper settings.



2W 1064nm
Infrared Laser
Engrave metals and heat-sensitive plastics with sharper detail — clean results without melting or burn marks.


Create From Any Angle
Handheld for on-the-go engraving or mounted for precise control — with flexible setups for every project.



Portable Design,
Pro Precision
8K Ultra-Detailed Engraving
The Galvo system and advanced laser control deliver camera-like detail for photos, jewelry, and intricate designs.

Designed for Micro Engraving
With 0.0019 mm motion accuracy, engrave incredibly small details — even on coffee beans or inside rings.
Engrave in Seconds
Finish custom logos and designs in seconds. With speeds up to 4000 mm/s, idle time instantly turns into profit.
Built-In Safety for Every Project
Integrated protection keeps you safe while you create — from start to finish.
Quick Stop Button
Overheat Protection
Tilt Protection
Magnetic Door Sensor
Exhaust Fan

Core Protection
The included Conical Cover and Goggles shield your eyes from 450nm and 1064nm laser light, ensuring safe operation at all times.

Enhanced Protection
The Standard Enclosure and built-in exhaust fan provide advanced safety for your workspace and surrounding area.
*Sold separately.
Create Smarter with LDS
LaserPecker Design Space (LDS) software and app streamline your workflow, making every project efficient and enjoyable.
Real-Time Preview
See your design exactly as it will be engraved. Laser paths are displayed in real-time for flawless accuracy — professional results, effortlessly, from the very first burn.
Simple 3-Step Workflow

Step 1 : Design
Import or create your custom artwork.

Step 2 : Laser
Preview and let the laser handle the rest.

Step 3 : Enjoy
Professional-quality results in just moments.

Cross-Platform
Compatibility
Cross-Platform
Compatibility
LDS works across iOS, Android, macOS, Windows, and iPadOS.
* LightBurn compatible for advanced users.
Engrave, Cut, and Personalize

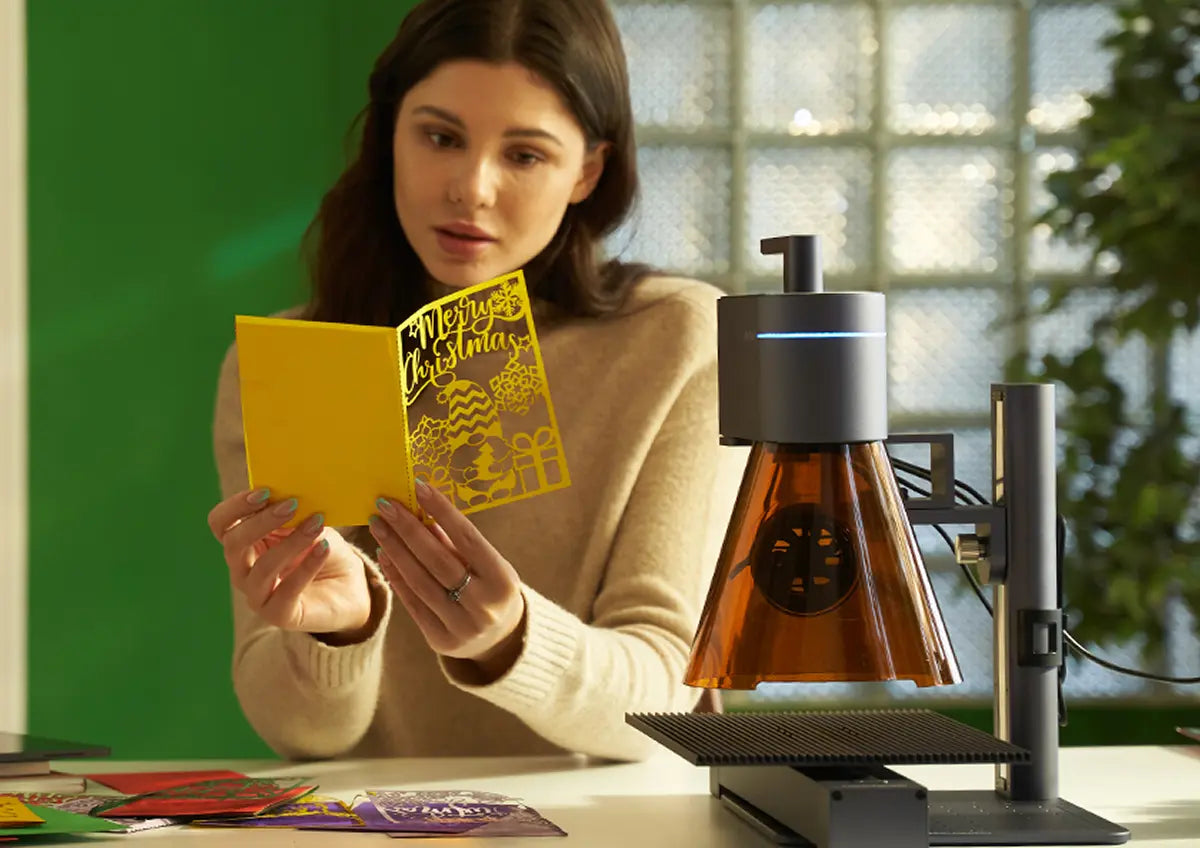

Holiday Gifts
DIY Customization
Artistic Photo
Cutting Art
Accessories That Expand Your Creativity
Slide Extension
Expand your workspace to 160×300 mm. Scale up creativity, boost productivity, and handle multi-batch projects with ease.
Rotary Extension
Engrave cylindrical objects like tumblers, mugs, bracelets, and rings — precision on every curve.

PowerPack Plus
Compact, lightweight, and travel-ready. DIY pro-grade results wherever inspiration strikes.
Air Purifier
Professional 4-stage filtration traps fumes, dust, and odors
— keep your workspace safe and breathable.
Professional 4-stage filtration system traps fumes, dust, and odors before they spread.
Breathe safely.
Compatible Add-Ons for LP4
Trusted by Creators Worldwide
CraftZone: Explore, Learn, and Share
Browse festive designs, pick up pro engraving tips, and connect with a vibrant community of laser makers.
Ideas, Skills, Rewards — All in One Place

Endless Inspiration
Browse thousands of creative ideas, upload your own, or discover new projects to fuel your next creation.

Comprehensive Tutorials
Follow guided tutorials from beginner to advanced, ensuring you can master engraving skills at your own pace.

Rewards Program
Participate in contests to earn seeds — redeem them for coupons, gift cards, and exclusive rewards.
Packing List


Specifications
Product Information
| Type | Details |
|---|---|
| Product Size | Laser Head: 241 x 82.1 x 139.7 mm
Stand: 260.5 x 218 x 283.5 mm Protective Shield: 176 x 145 x 155.7 mm |
| Product Weight | Laser Unit: 2.2 kg
Electric Stand: 1.8 kg Conical Protective Cover: 0.238 kg Total Weight: 4.23 kg |
| Laser Type | 10W 450nm Blue Diode Laser +2W 1064nm Infrared/IR Laser |
| Supported Materials | 2W 1064nm Infrared Laser: Metal, Plastic, Leather, and any material with paint coating 10W 450nm Blue Diode Laser: Lacquered metal, Anodized Aluminum, 304 Stainless Steel, Bamboo, Wood, Leather, Food, Paper, Fabric, Photosensitive printing, Plastic, Acrylic, Tinted glass, Color glaze ceramics, etc. |
| Working Area | 160 mm x 120 mm (Basic)
160 mm x 300 mm (with the Slide Extension) |
| Max. Working Speed | 4000 mm/s |
| Cutting Depth | 8mm Basswood 5mm Black Acrylic |
| Max. Processing Height | 94 mm |
| Max. Rotary Engraving Diameter | 200 mm |
Smart Software
| Type | Details |
|---|---|
| Supported Software | LaserPecker Design Space App & PC Software & LightBurn |
| Operating System | Mobile - iOS 13.0+ & Android 7.0+
PC - macOS 10.15+ & Windows 10+ |
| Connection Method | Mobile - Wireless Bluetooth 5.0
PC - USB Connection / Wireless Bluetooth 5.0 (Dongle Required) |
| Supported Files | PC: G-Code/JPG/PNG/BMP/SVG/DXF etc. Vector Format
APP: G-code/JPG/PNG/BMP/SVG |
| Preview Method | Rectangle Preview/Outline Preview/Center Point Preview |
Accuracy & Precision
| Type | Details |
|---|---|
| Laser Spot Size | 0.05 x 0.05mm (10W Diode Laser)
0.01 x 0.01mm (2W Infrared Laser) |
| Positioning Precision | 0.01mm |
| Image Resolution | 1K/2K/4K/8K |
| Motion Accuracy | 0.01mm |
General Information
| Type | Details |
|---|---|
| Safety Certification | CE, ROHS, FCC, FDA, CDRH, NCC, KC, UKCA, TELEC |
| Input Power | DC(24V⎓5A) 120W
AC(100-240V, 50-60HZ) |
| Supported Language | English, German, Spanish, French, Japanese, Korean, Polish, Russian, Portuguese, Simplified Chinese and Traditional Chinese |
Specifications
Product Information
| Product Size | Laser Head: 241 x 82.1 x 139.7 mm
Stand: 260.5 x 218 x 283.5 mm Protective Shield: 176 x 145 x 155.7 mm |
|---|---|
| Product Weight | Laser Unit: 2.2 kg
Electric Stand: 1.8 kg Conical Protective Cover: 0.238kg Total Weight: 4.23 kg |
| Laser Type | 10W 450nm Blue Diode Laser +2W 1064nm Infrared/IR Laser |
| Supported Materials | 2W 1064nm Infrared Laser: Metal, Plastic, Leather, and any material with paint coating 10W 450nm Blue Diode Laser: Lacquered metal, Anodized Aluminum, 304 Stainless Steel, Bamboo, Wood, Leather, Food, Paper, Fabric, Photosensitive printing, Plastic, Acrylic, Tinted glass, Color glaze ceramics, etc. |
| Working Area | 160 mm x 120 mm (Basic)
160 mm x 300 mm (with the Slide Extension) |
| Max. Working Speed | 4000 mm/s |
| Cutting Depth | 8mm Basswood
5mm Black Acrylic |
| Max. Processing Height | 94mm |
| Max. Rotary Engraving Diameter | 200 mm |
Smart Software
| Supported Software | LaserPecker Design Space App & PC Software & LightBurn |
|---|---|
| Operating System | Mobile - iOS 13.0+ & Android 7.0+
PC - macOS 10.15+ & Windows 10+ |
| Connection Method | Mobile - Wireless Bluetooth 5.0
PC - USB Connection / Wireless Bluetooth 5.0 (Dongle Required) |
| Supported Files | PC: G-Code/JPG/PNG/BMP/SVG/DXF etc. Vector Format
APP: G-code/JPG/PNG/BMP/SVG |
| Preview Method | Rectangle Preview/Outline Preview/Center Point Preview |
Accuracy & Precision
| Laser Spot Size | 0.05 x 0.05mm (10W Diode Laser)
0.01 x 0.01mm (2W Infrared Laser) |
|---|---|
| Positioning Precision | 0.01mm |
| Image Resolution | 1K/2K/4K/8K |
| Motion Accuracy | 0.01mm |
General Information
| Safety Certification | CE, ROHS, FCC, FDA, CDRH, NCC, KC, UKCA, TELEC |
|---|---|
| Input Power | DC(24V⎓5A) 120W
AC(100-240V, 50-60HZ) |
| Supported Language | English, German, Spanish, French, Japanese, Korean, Polish, Russian, Portuguese, Simplified Chinese and Traditional Chinese |
