LaserPecker LP5 - The Smart 20W Fiber + Diode Laser Engraver

Name: LaserPecker LP5 - The Smart 20W Fiber + Diode Laser Engraver
Brand: LaserPecker
SKU: LP5-Basic-US
Price: 2499.0 USD
Availability: InStock

$2,499.00

$3,299.00

Save $800.00

+2499

Seeds for LaserPecker members

Black Friday Huge Savings: Get the smart 20W dual-laser engraver for just $2499 and boost your business!

The most capable, lightest weight, and most compact engraver in its class. Versatile and reliable on a wide range of materials, for multiple application scenarios.
Engrave at up to 10,000mm/s, rapid engraving task completion, batch processing with variable text and smart filling.
Deep engraving for high-contrast markings, vivid 3D grayscale embossing, ultra-precise metal cutting.

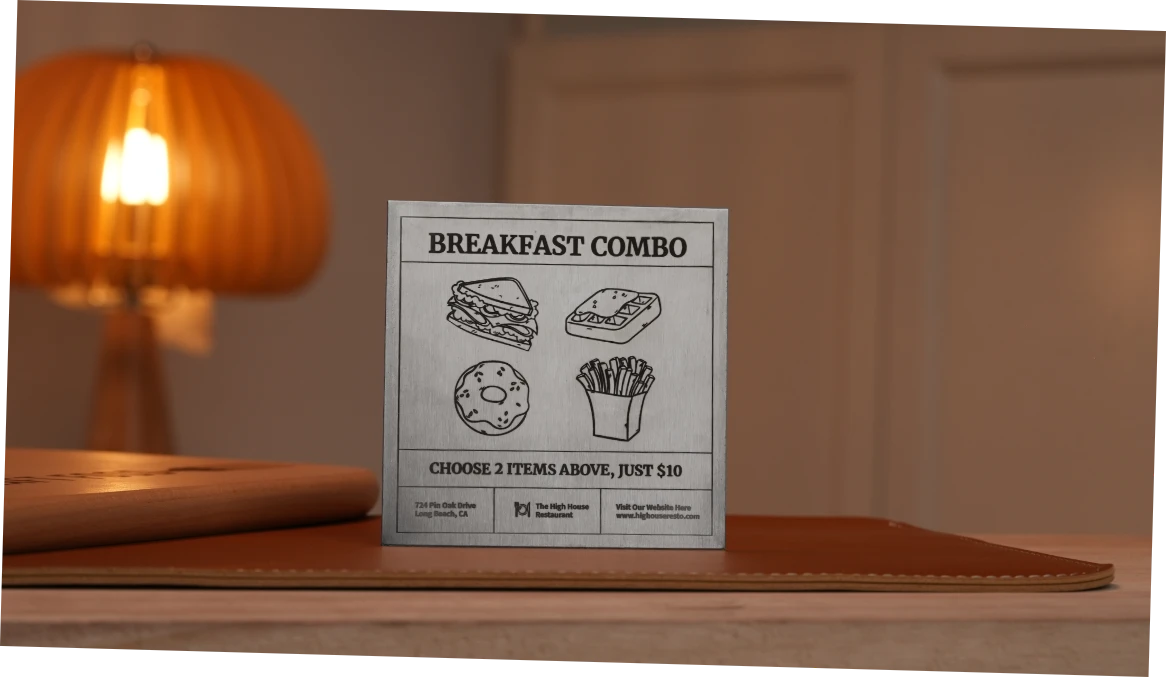

Safely engrave and deliver instant services indoors, for retail stores, maker spaces and creative studios.

**The color of the free cutting plate may vary by batch.

Package

LP5 Standard Bundle

$3,299.00 $2,499.00

Best Price

save $800

LP5 Business Bundle

$3,999.00 $2,999.00

save $1000

LP5 All-in-One Bundle

$4,399.00 $3,199.00

Most Picked

save $1200

LP5 Safety Bundle

$4,497.00 $3,199.00

save $1298

LP5 Portable Bundle

$3,558.00 $2,599.00

save $959

Frequently Bought Together

$ $

Quantity

-

+

Buy Now

Free Shipping over $69

7-Day Price Guarantee

24-hour Customer Service

Safe & Secure Checkout

Total Power & Versatility

Next-Level Productivity

Reach the Unreachable

Safe. Efficient. Simple

Total Power & Versatility

Next-Level Productivity

Reach the Unreachable

Safe. Efficient. Simple

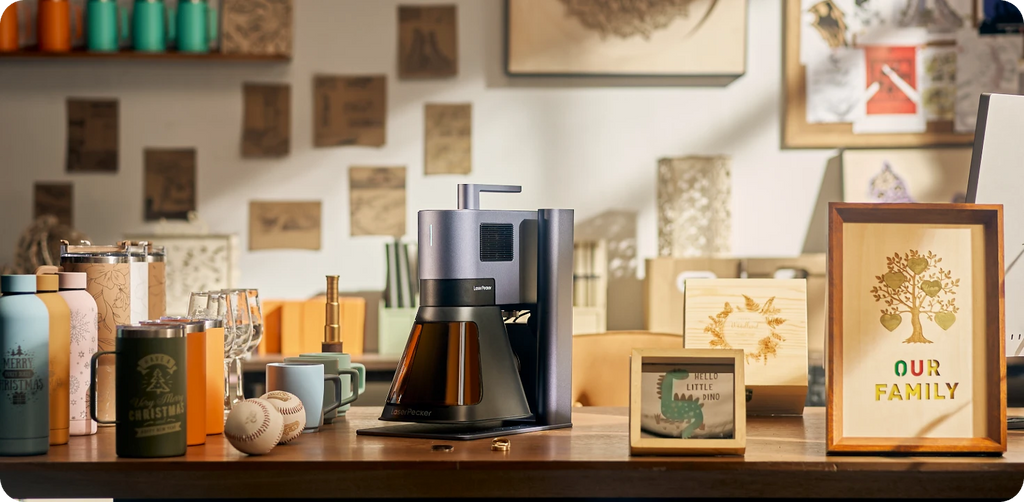

LaserPecker LP5

Pro-Grade Power, Fit-Anywhere Design

Watch Video

Speed

Flexible

Engraving Position

Free Design Software

Dual 20W System

20W Diode

20W Fiber

99%
Material
Coverage

Metal Cutting

Offline
Processing

Deep 3D
Engraving

Class 1

Safety Enclosure

Expandable Capability

Real User Stories

tag4mypet

Pet Business

"The quality of the engraving is excellent, and it’s surprisingly easy to use and operate. What I like most is that I can take it with me to markets and personalize tags right on the spot, which customers love! "

Rianna and Calvin

Laser Engraving Studio

If there's a new restaurant opening, we take them a little engraved gift," Rianna explains. "Even if they don't need engraving then, they remember us.

Mia

Etsy Store

"The LP5 has been a gamechanger for me! I love how easy it is to bring to vendor events and with the camera enclosure and auto alignment! Also the material possibilities are endless. "

tag4mypet

Pet Business

"The quality of the engraving is excellent, and it’s surprisingly easy to use and operate. What I like most is that I can take it with me to markets and personalize tags right on the spot, which customers love! "

Rianna and Calvin

Laser Engraving Studio

If there's a new restaurant opening, we take them a little engraved gift," Rianna explains. "Even if they don't need engraving then, they remember us.

Mia

Etsy Store

"The LP5 has been a gamechanger for me! I love how easy it is to bring to vendor events and with the camera enclosure and auto alignment! Also the material possibilities are endless. "

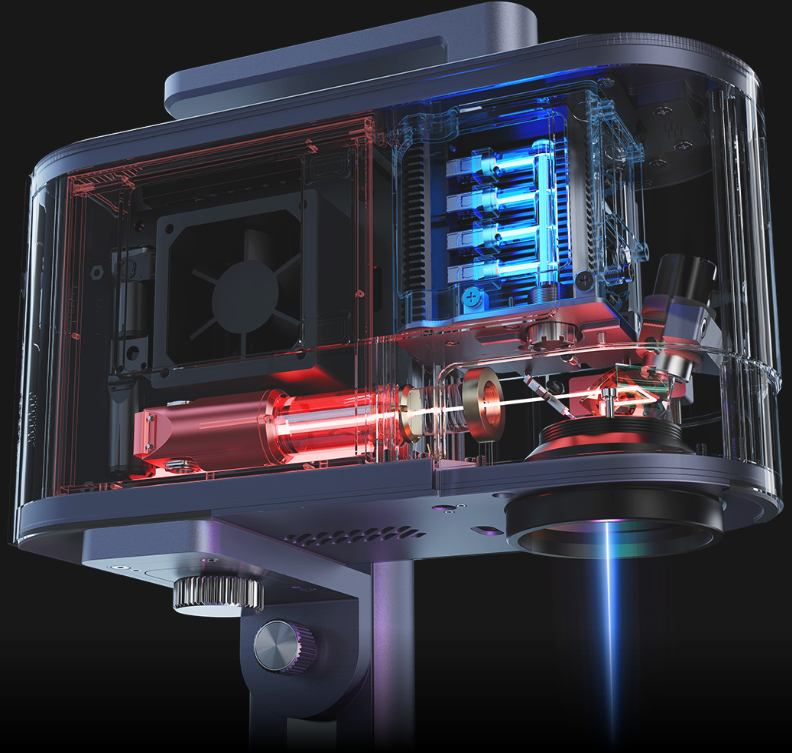

LP5 integrates a powerful 20W Fiber laser with a robust 20W Diode laser to redefine desktop fabrication. This synergy delivers unmatched material adaptability—enabling you to process virtually every common material, from precision metalwork to organic substrates—while guaranteeing superior processing speed and quality for every project.

One Investment, Limitless Project

Unmatched Material Adaptability

99% Material Coverage

20W Fiber Laser:

Achieve deeper engraving and thin metal cutting with 4X the power of standard 5W lasers. Dedicated to permanent, industrial-grade results on metals and plastics.

20W Diode Laser:

Optimized for speed and absorption, conquering cutting and engraving on non-metallic materials, including wood, leather, acrylic, and more.

Depth, Detail, and Diversity

Superior Processing Performance

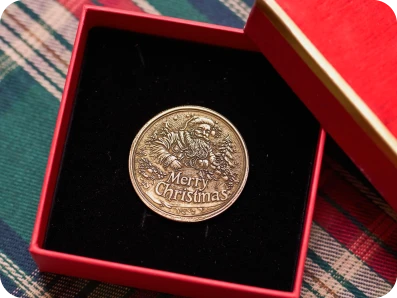

Deep Engraving & 3D Embossing Relief

Our system masters everything from deep engraving to 3D relief, delivering impeccable finishes on metal, wood, and stone. With built-in free 3D resources, stunning results are just a click away—complexity simplified, workflow streamlined.

Deep Engraving

3D Embossing Relief

Flawless Cutting

Achieve precise, clean-edged metal cutting with zero thermal deformation. This capability ensures your work maintains the highest quality and allows for flawless fabrication and professional-grade detailing.

Color Engraving

Vibrant Multi-Color

Premium Black Engraving

Industrial Edge, Max Profit

Why Choose 20W Fiber for Your Business?

Unmatched Metal Performance

Delivers deep engraving and clean cutting through concentrated high power. Ideal for permanent marks on valuable metals and complex, durable designs.

Speed is Profit

The 20W fiber laser enables rapid batch production, delivering faster turnaround without quality loss—shortening lead times and expanding client capacity.

Precision and Versatility

Achieves 0.0027mm precision via a smaller spot, enabling intricate work and expanded service offerings beyond basic marking.

Long-Term Reliability

Industrial-grade fiber technology delivers extended lifespan and maximum ROI.

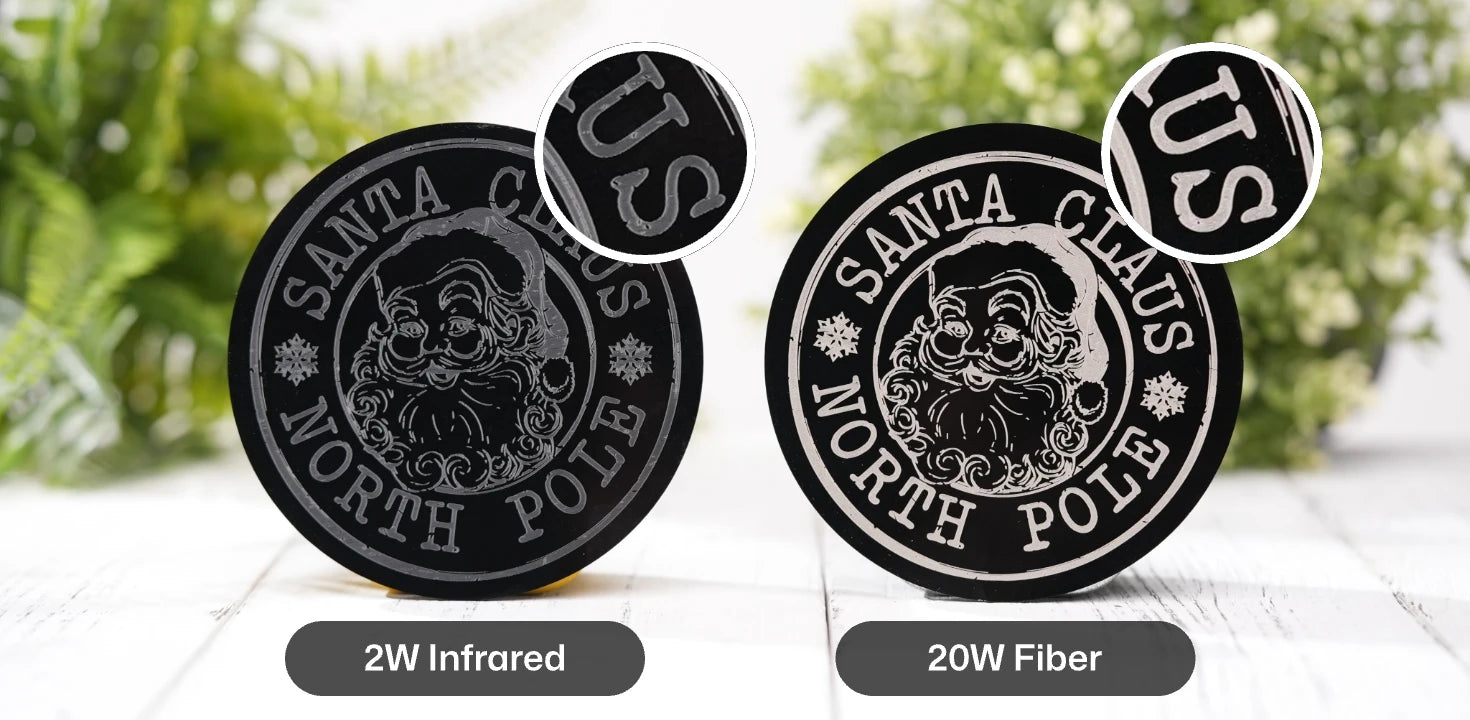

Deeper Dive into Fiber and Infrared Differences

Industrial-Grade Galvo

Speed and Precision Perfected

Scale Your Vision

Accessories for Expanded Capability

Expand a single unit into a full workflow for batch, oversized, and cylindrical jobs with our professional modular expansion system.

Slide Extension

Integrating the Slide Extension easily extends your working length, boosting capacity for long materials and large batch processing. This lets you efficiently complete long-format orders, maximizing production and improving customer satisfaction.

Rotary Extension

The Rotary Extension provides the precise mechanism to fix and rotate cylindrical objects, enabling you to easily enter and dominate the market of custom cylindrical items, such as tumblers and jewelry, and open vast new revenue streams with personalized engraving.

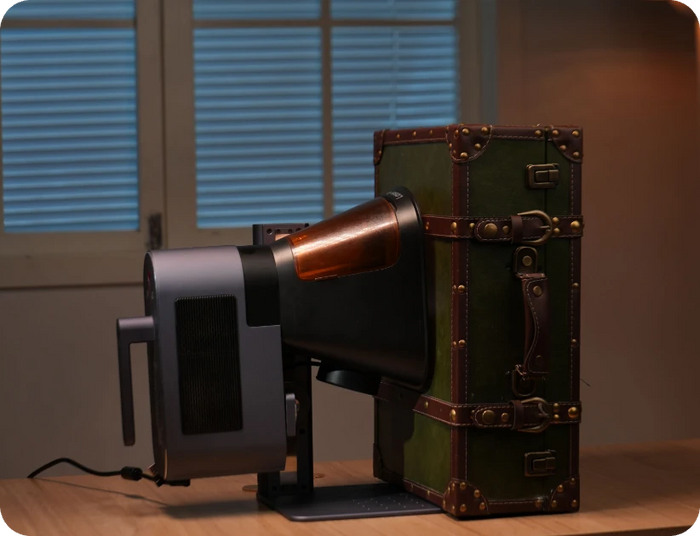

Any Angle, Any Surface

Power Without Limits

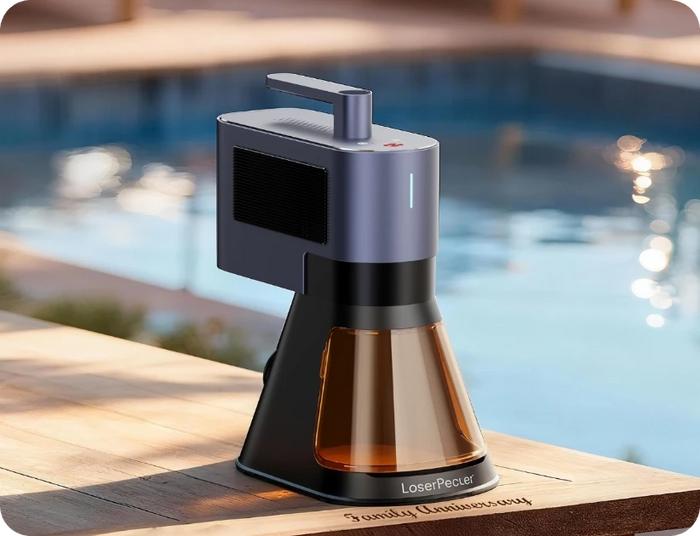

At just 3.7kg, the LP5 redefines mobility. The adjustable stand unlocks flexible engraving angles, allowing you to easily process vertical surfaces and hard-to-reach areas. Combined with the hollowed-out base design, you can place the machine directly onto large objects for effortless engraving. With automatic focus and the free mobile app, transform ideas into finished products instantly. Seize market opportunities on the spot, from pop-ups to client sites.

Protection Meets Profit

Safety First, Efficiency Always

Safe Laser, Trusted Performance

Operate with confidence in any indoor space. The LP5’s Class 1 Safety Enclosure ensures complete protection with 99.99% laser filtration, door sensors, and instant emergency stop. Optional 3-stage air filtration keeps indoor air clean.Compliant and customer-ready, it’s built for retail, studios, and shared spaces—so you can focus on your work, not on safety worries.

Smart Automation for Efficiency

The Safety Enclosure features a built-in positioning camera and a liftable material base. The camera enables smart batch fill via software, eliminating manual positioning and significantly boosting service efficiency and profitability. Meanwhile, precise focusing is assured by the liftable base, and dual front-and-back doors make material handling a breeze.

Smart Batch Fill

Dual Access

Liftable Base

From Idea to Done

Intuitive, Zero-Fuss Workflow

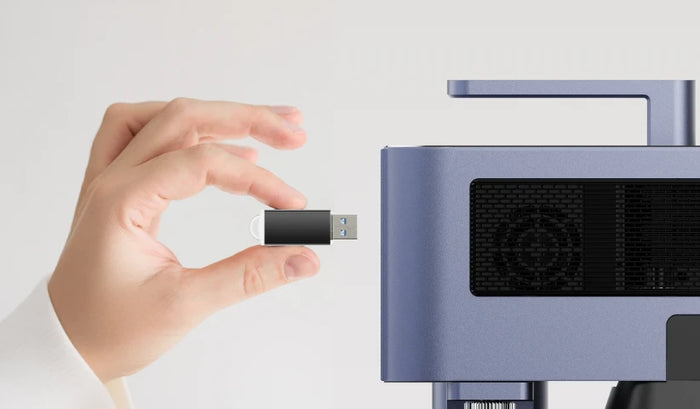

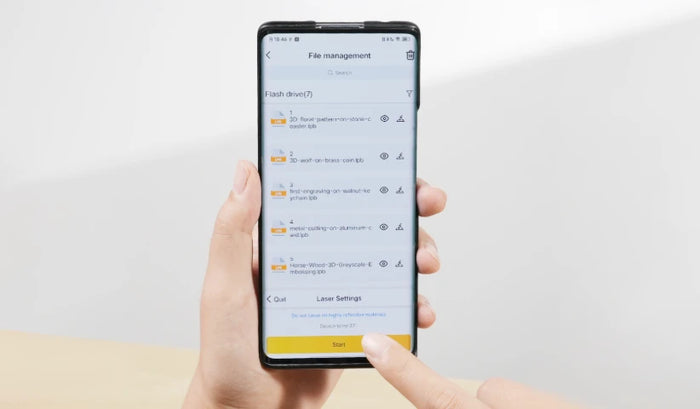

Offline Processing

Our system supports truly flexible connectivity, allowing control via Wi-Fi or wired connection and enabling USB drive offline operation for easy repeating jobs. This freedom means your creation is never restricted by cables or location, providing an unprecedented level of convenience and workflow flexibility.

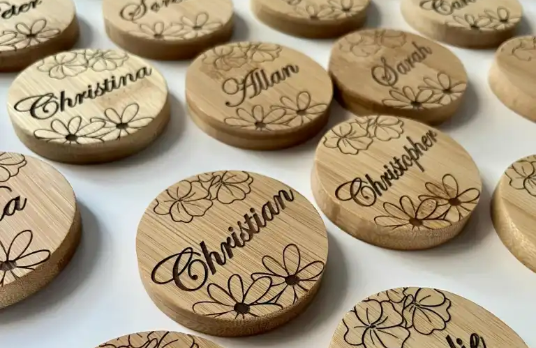

Automated Output

The Batch Variable Engraving function allows you to quickly complete repetitive, incremental tasks like serial numbers or dates without manual setup. This ultra-efficient capability dramatically boosts production efficiency, making it ideal for high-volume or batch runs.

Zero Barrier to Use

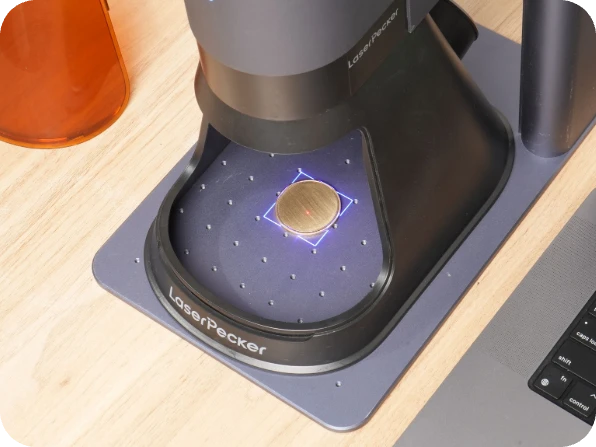

LP5 drastically simplifies complex laser processes. Focusing is instant and foolproof: achieve it by touching the material with the Protective Cover edge or overlapping the two red light spots—no complex calibration needed. For positioning, utilize two dedicated preview modes.

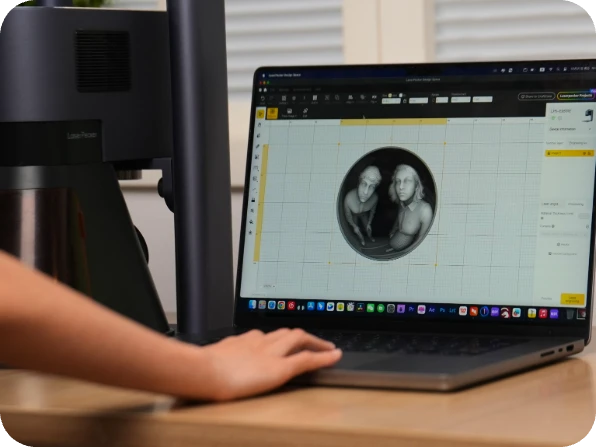

Real-Time Drag-and-Drop Preview

Instantly position your designs with an intuitive, real-time visual interface. Make adjustments on the fly and see the layout come together before you start.

Outline Preview (Multi-File Supported)

Get total confidence with true vector accuracy. Preview the exact engraving outcome to ensure perfect placement and flawless results every time.

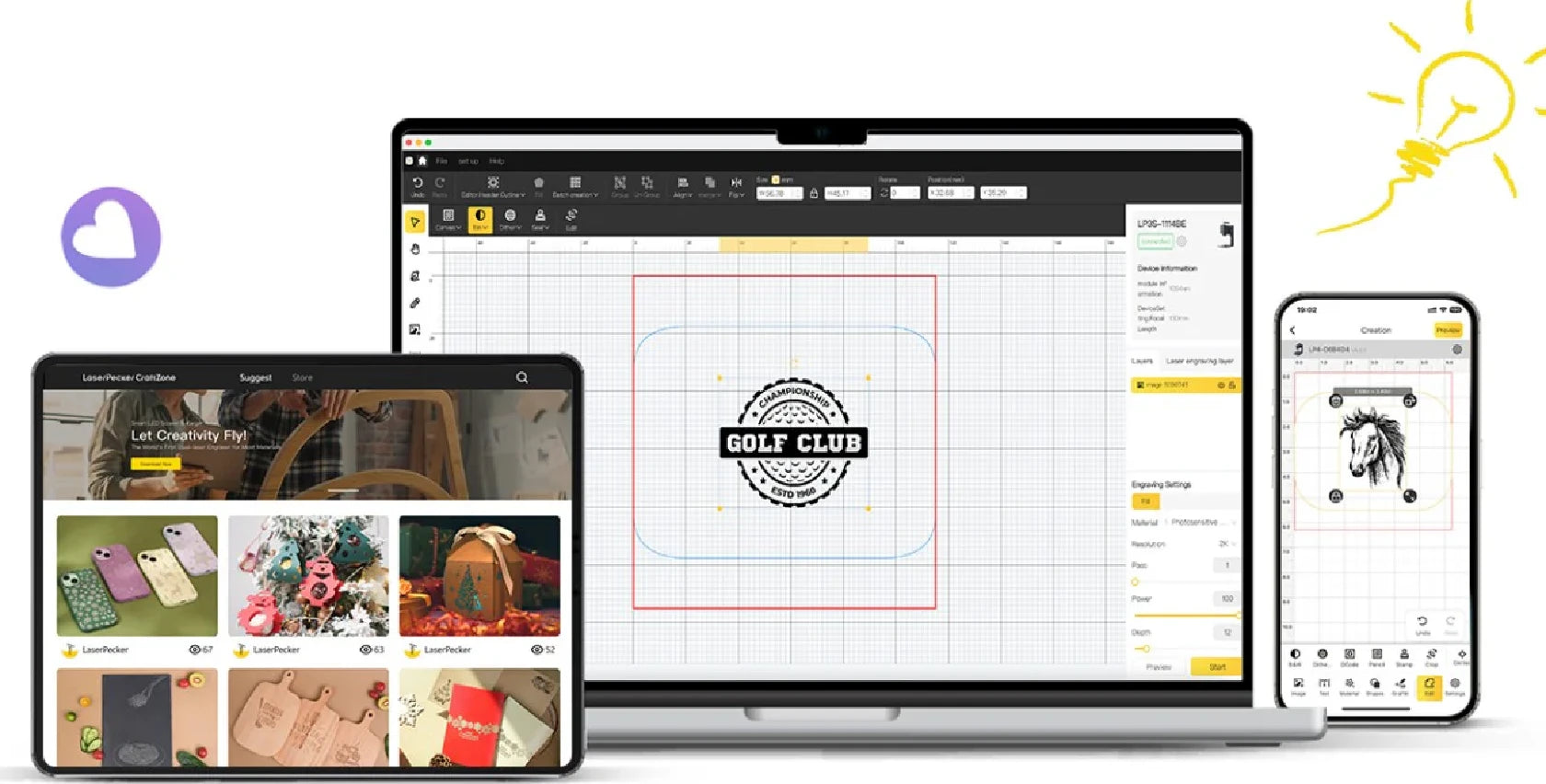

Software Ecosystem

Simple Creation Starts

LaserPecker Design Space

Unlock your creativity with the most powerful laser software—completely free. Use it on your PC, phone, or iPad and dive into a vast library of ready-to-make designs and tutorials. With one-click settings to prevent material waste and a real-time preview for flawless execution, it's the smart partner you need to save time and money on every project.

Compatible with LightBurn

Ready to go with LightBurn. Start creating immediately using the industry's professional standard laser software.

Design, Preview, and Execute

Design

Preview

Execute

Design

Preview

Execute

Packing List

LP5 Laser Unit, Electric Stand,
Base Plate and Conical Protective Cover

Power Cable x 1
Power Adapter x 1

Pipe x 1
Pipe Adapter x 1

Safety Goggles x 1

Cable 1.5m x 1
/0.6m x 1

Tool Box x 1
User Manual x 1

L-shaped
Positioner x 2

USB Flash Drive x 1

Material Pack

Specifications

General Information

Product Size

Laser Unit: 255 x 98 x 183mm
Electric Stand: 198 x 286 x 323mm
Conical Protective Cover: 167 x 231 x 160mm

Product Weight

Laser Unit: 3.36 kg
Electric Stand: 2.28 kg
Conical Protective Cover: 0.38 kg
Total Weight: 6.02 kg

Laser Type

20W 450nm Blue Diode Laser
20W 1064nm Fiber Laser

Supported Materials

20W 1064nm Fiber Laser:
stainless stell, aluminum, brass, silver, plastic, platinum, titanium
20W 450nm Blue Diode Laser:
wood, acrylic, leather, glass, rock, paper, rubber

Working Area

120 x 160 mm (Ellipse)
100 x 100 mm (Square)
160 x 300 mm (with the Slide Extension)

Max. Working Speed

10000 mm/s

Cutting Depth

up to 1mm of brass, stainless steel,
aluminum, and titanium sheets
up to 20mm basswood
up to 15mm thick black acrylic

Max. Processing Height

137mm

Max. Rotary Engraving Diameter

200 mm

Smart Software

Supported Software

LaserPecker Design Space Mobile App &
LaserPecker Design Space PC Software & LightBurn

Operating System

Support iOS 9.0+, Android 7.0+, macOS 10+, Windows 10+ Compatible with LightBurn

Connection Method

USB, Wi-Fi

Supported Files

PC Software:
G-code/JPG/PNG/BMP/SVG/DXF etc. Mobile App: G-code/JPG/PNG/SVG

Preview Method

Rectangle Preview/Outline
Preview/Center Point Preview

Accuracy & Precision

Laser Spot Size

0.08 x 0.1 mm (20W Diode Laser)
0.06 x 0.06 mm (20W Fiber Laser)

Positioning Precision

0.0027mm

Ranging Precision

Laser Unit: 3.36 kg
Electric Stand: 2.28 kg
Conical Protective Cover: 0.38 kg
Total Weight: 6.02 kg

Image Resolution

1K/2K/4K/8K

Motion Accuracy

0.0027mm

General Information

Safety Certification

CE / ROHS / FCC / FDA / NCC / KC / UKCA
/ TELEC / SRRC

Input Power

DC(24V⎓7.5A) 180W
AC(100-240V,50-60Hz)

Supported Language

English, German, Spanish, French, Japanese, Korean, Polish, Russian, Portuguese, Simplified Chinese and Traditional Chinese

FAQ

1. What accessories can the LaserPecker LP5 work with?

The LP5 works with the following accessories:
Slide extension -expand the working area;
Rotary extension -irregular cylinders and objects from 1mm to 145mm in diameter;
Air Purifier, Safety Enclosure; Cutting plate; Powerpack Plus.

2. What is the laser type of LaserPecker LP5?

Equipped with dual laser sources, LP5 has 20W fiber and 20W blue diode laser. It can engrave almost ALL common materials during daily usage.
Diode lasers perform best on wood, dark acrylic, leather, slate, glass, ceramic, etc., while fiber lasers can engrave clearly on all-metals(stainless steel, aluminum, gold, silver, iron, platinum) and plastic.

3. Will the Safety Enclosure launch simultaneously with LP5?

The Safety Enclosure is available to order now.

4. ls the camera included in any LP5 Bundle?

The camera module is NOT in any current LP5 bundles. It comes with the Safety Enclosure.
If you want to use the camera module function, you will need to purchase our Safety Enclosure separately.

5. How's LP5's Performance on metal? Can it cut metal?

LP5 can perform deep engraving, 3D grayscale embossing and even metal cutting.
20W Fiber for Metal Cutting:
0.4mm Iron, 2 passes
0.2mm Aluminum, 1 pass
0.5mm Stainless Steel, 4 passes
0.5mm Brass, 2 passes
20W Diode for Wood & Acrylic Cutting:
12mm Black Acrylic, 1 pass
15mm Black Acrylic, 2 passes

6. What is the difference between LP5 and LP4? How should l choose one?

LP5: Most Efficient Batch Engraving on almost all materials- Faster and more power. LP5 has both 20W Fiber and 20W Diode Laser with its industrial-grade speed 10000mm/s, 120mm x 160mm (Basic)/160mm x 300mm (with the Slide Extension) engraving area. It can do deep engraving for high-contrast markings, vivid 3d grayscale embossing, ultra-precise metal cutting.
LP4: The LP4 also features a dual laser system, combining 2W infrared laser and 10W diode laser. It is up to 4000mm/s speed, 160mm x 120mm (Basic)/160mm x 300mm (with the Slide Extension) engraving area. It is lighter and great for professional users, hobbyists, etc.
For more detailed comparisons, LaserPecker LP4 vs LaserPecker LP5: What’s the Difference?.

7. What software does LaserPecker LP5 use?

The LP5 works in harmony with LaserPecker Design Space Software (PC) and App, as well as Lightburn.
